Product Name: Special Caprolactone Copolymer (PCL-H Series)
Available Grades: HA2, HA3, HA4, HAM2, HAM3, HAM4, HP-3, HPM-3
Appearance: Clear, colorless to slightly yellowish liquid
Molecular Weight: 230 - 472 g/mol
Tg (Glass Transition): -8 to -45 °C (Excellent low-temp toughness)
Viscosity: 30 - 140 mPa·s (at 25°C)
Inhibitor: MEHQ (500 or 1000 ppm)
Water Content: ≤ 0.03%
Packaging: 1 kg / 20 kg / 200 kg (Opaque containers for light protection)
Storage: 2-8°C, keep dry and away from light
Lead Time: Typically 7-14 days for stock. Final terms confirmed upon order.
Documents: Batch-specific COA & SDS provided.
Manufacturer: Alfa Chemical (Zhengzhou, China)

Chat Now
Product Introduction
🧪 High Purity Macromonomer
💧 Viscous Liquid
🌡️ Low Tg (-8 to -45°C)
📋 COA & SDS Provided
🏭 Alfa Chemical China

Special Caprolactone Copolymer (PCL-H Series) | China Manufacturer

HEMA-PCL · HA-PCL · HP-PCL · HAM-PCL · HPM-PCL · High-Performance Acrylate Macromonomer

⚖️ MOLECULAR WEIGHT
230 - 472
g/mol (Varies by chain length)
🌡️ Tg (Glass Transition)
-8 to -45
°C, excellent low-temp toughness
💧 VISCOSITY (25°C)
30 - 140
mPa·s
🧪 INHIBITOR (MEHQ)
500 / 1000
ppm, prevents self-polymerization
🧪 MOQ: Trial on request
|
📦 Pack: 1kg / 20kg / 200kg
|
🚚 Lead: Typically 7-14 days
|
🛡️ Docs: COA & SDS
🏭 Manufactured by Alfa Chemical - Zhengzhou, China
For industrial and laboratory use only. Final terms confirmed upon order.

Product Overview

The PCL-H Series (Special Caprolactone Copolymer) is a reactive macromonomer synthesized via ring-opening polymerization of caprolactone monomers, initiated by hydroxyalkyl acrylates or methacrylates (such as HEA, HEMA, HPA, and HPMA). Manufactured by Alfa Chemical in Zhengzhou, China, this series is widely used to overcome the inherent brittleness of standard acrylic resins.

Mechanism of Action (Internal Plasticization): Unlike external plasticizers that can migrate and cause coating failure over time, this macromonomer chemically bonds flexible aliphatic polyester chains directly into your polymer backbone. The acrylate double bond (R group) ensures rapid UV or thermal crosslinking, while the caprolactone units (denoted by the number 2, 3, or 4) provide exceptional low-temperature toughness, high elasticity, and outstanding scratch resistance.

The Storage & Gelling Risk: Because this is a highly reactive monomer, it is susceptible to premature self-polymerization if exposed to heat or light. Sourcing from Alfa Chemical guarantees strict quality control: every batch is precisely stabilized with MEHQ (500 or 1000 ppm) and tested for extremely low moisture (≤ 0.03%), ensuring stable storage and predictable curing kinetics in your production line.

↓ Understand the naming convention? The section below breaks down the full matrix based on Tg and viscosity.

Key Technical Features

🛡️ Internal Plasticization
The Challenge: Conventional rigid acrylics are brittle and require external plasticizers, which can migrate and cause film failure over time.
Our Solution: The caprolactone chains are chemically bonded to the acrylic backbone. This provides permanent flexibility and toughness without any plasticizer migration issues.
🧊 Exceptional Low-Temp Toughness
The Challenge: Coatings and adhesives often crack or lose impact resistance when exposed to sub-zero temperatures.
Our Solution: With glass transition temperatures (Tg) ranging from -8°C to -45°C, our H-series imparts excellent cold flexibility and impact resistance to your final polymer.
⚡ Rapid UV Curing
The Challenge: Adding flexibility often slows down the curing speed of UV formulations.
Our Solution: The reactive acrylate double bonds (especially in HA/HP grades) ensure high reactivity, allowing for rapid crosslinking and high production line speeds.
🧪 Excellent Compatibility
The Challenge: Additives often cause haze or phase separation in clear coating systems.
Our Solution: Highly soluble in standard solvents (ethyl acetate, toluene) and fully compatible with acrylics and polyurethanes, ensuring a crystal-clear, non-hazing film.

PCL-H Series Grade Matrix

How to read the grade:
• HA/HP = Acrylate initiated (faster curing). HAM/HPM = Methacrylate initiated (better weatherability).
• Number (2, 3, 4) = Caprolactone chain length. Higher number = Higher MW, lower Tg (more flexible), and higher viscosity.
Grade
MW (g/mol)
Viscosity (mPa·s)
Tg (°C)
Hydr-value (KOH-mg/g)
Acid Value
MEHQ (ppm)
Acrylate Series (Fast Curing)
HA2
230
~30
-28
244
≤3.0
500
HA3
344
~76
-42
163
≤3.0
500
HA4
458
~140
-45
123
≤3.0
500
Methacrylate Series (High Weatherability)
HAM2
244
~30
-8
230
≤3.0
500
HAM3
358
~70
-26
157
≤3.0
500
HAM4
472
~125
-38
119
≤3.0
1000
Propyl-initiated Series (Altered Polarity)
HP-3
358
~112
-42
157
≤3.0
500
HPM-3
372
~110
-30
151
≤3.0
500
Need a specific molecular weight or mixed formulation? We can customize the caprolactone chain length upon request.
Discuss Custom Specs →

Targeted Applications

The PCL-H series is widely used as a functional monomer in high-end formulations requiring an exact balance of hardness and flexibility. Here is how it performs in specific industrial scenarios:

🚗 Automotive & 3C Coatings
Used in UV-curable hardcoats for automotive interiors, smartphone casings, and electronic devices. Provides extreme scratch and abrasion resistance while maintaining impact resistance so the coating doesn't crack under stress.
🪵 Wood & Plastic Coatings
Formulated into wood coatings and plastic paints to improve flexibility and adhesion. It acts as an excellent coupling agent that prevents the coating from peeling or flaking when the substrate expands or contracts.
🩹 Pressure-Sensitive Adhesives (PSA)
Directly copolymerized into acrylic PSA systems to increase tack and peel strength. Its low Tg provides superior wet-out on low-surface-energy (LSE) substrates like polypropylene (PP) and polyethylene (PE).
🖨️ 3D Printing & Photopolymers
Used as a flexible building block in SLA/DLP 3D printing resins. It reduces the shrinkage and brittleness of printed parts, yielding tough, rubber-like elastomers with excellent rebound properties.
↓ To ensure your QC team receives exactly what is specified, we provide full batch documentation.

General Specifications

Typical quality parameters for the PCL-H series. Actual data is provided on the Certificate of Analysis.

Item
Value / Specification
General Properties
Origin
Zhengzhou, Henan, China (Alfa Chemical)
Appearance
Clear, colorless to slightly yellowish liquid
Color (APHA)
≤ 50
Water Content
≤ 0.03%
Inhibitor (MEHQ)
500 or 1000 ppm (depending on grade)
Storage Condition
Store at 2-8°C, away from light and air.
Quality Documents Available
Every shipment includes a batch-specific COA and SDS. Long-term storage stability data is available upon request.

Why Choose Alfa Chemical

We understand that reactive macromonomers require strict quality control to prevent premature gelling and ensure batch-to-batch consistency.

📋 Strict Inhibitor Control
MEHQ levels are carefully controlled (500/1000 ppm) and reported on the COA, ensuring your monomer remains stable during transit and storage.
🔬 Custom Molecular Design
Need a different initiating alcohol or caprolactone chain length? Our technical team can custom-synthesize the macromonomer to fit your exact Tg or viscosity requirements.
🏭 Cold-Chain Logistics
Since these products require low-temperature storage, we provide reliable insulated packaging and fast dispatch from our Zhengzhou facility to preserve product integrity.
↓ Once the grade is confirmed, the next priority is receiving the reactive material with consistent packaging and documentation.

Packaging & Delivery

Cold-Chain & Light-Protected Packaging: These reactive macromonomers are susceptible to heat and UV light. To prevent premature self-polymerization during transit, we use opaque, heavy-duty containers and offer insulated packaging with cooling agents upon request.

📦 Packaging Scales
R&D
1 kg / 5 kg
Amber glass bottle or opaque plastic container
PILOT
20 kg
Coated metal pail / HDPE drum

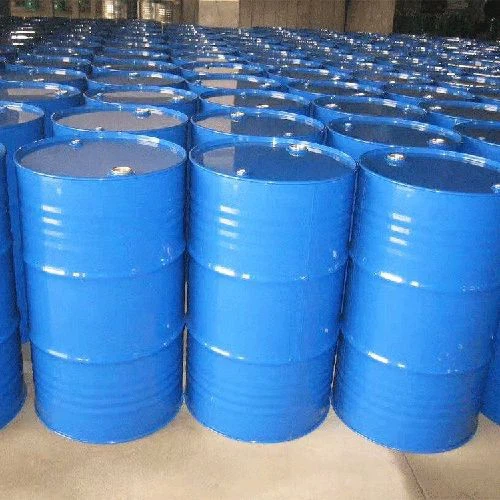

BULK
200 kg / 1000 kg
Standard steel drum or IBC tote
Storage: 2-8°C, protected from light and moisture.
Warning: Use immediately after opening. Prolonged exposure to air will cause content degradation.
Request Custom Pack →
🚚 Shipping & Lead Time
Stock Items
7-14 days
Custom Orders
Confirm on Order
Shipping is matched to order volume and temperature requirements:
Samples (1-5kg)
📦 Express (Insulated)
Pilot (20kg)
✈️ Air Freight
Bulk (200kg+)
🚢 Sea / Rail Freight
* Final terms, transport classification, and cold-chain logistics are confirmed upon order.
Need a freight estimate?
Discuss Logistics →

Frequently Asked Questions

Q: Why is MEHQ added to this product?
A: MEHQ (Monomethyl ether of hydroquinone) is a polymerization inhibitor. Because the PCL-H series contains reactive acrylate double bonds, adding MEHQ (500 or 1000 ppm) prevents the monomer from self-polymerizing prematurely during storage or transport.
Q: How do you guarantee it won't gel during international shipping?
A: We use opaque containers to block UV light. For R&D samples and pilot batches, we provide insulated packaging with cooling agents (ice packs) or arrange cold-chain logistics to maintain the required 2-8°C. For bulk shipments, we use temperature-controlled reefer containers when necessary.
Q: Is this product classified as dangerous goods for transport?
A: Depending on the specific grade and local regulations, acrylate monomers may be classified as hazardous for transport. We provide a complete SDS and transport declaration to ensure safe and compliant shipping via air or sea.
Q: What is the difference between HA and HAM grades?
A: HA grades are initiated with Hydroxyethyl Acrylate (HEA), providing faster curing speeds and higher flexibility. HAM grades are initiated with Hydroxyethyl Methacrylate (HEMA), offering slightly lower volatility and different Tg characteristics, depending on your formulation.
Q: What solvent system is compatible with PCL-H?
A: The PCL-H series is highly soluble in common organic solvents such as ethyl acetate, butyl acetate, toluene, and xylene. It is also compatible with most standard acrylic and polyurethane resin systems.
Q: What are the MOQ, lead time, and payment terms?
A: Trial quantities from 1 kg are available. Lead time for stock items is typically 7–14 days. We accept T/T or L/C. Final terms are confirmed upon order based on volume and destination.
Ready to enhance your formulation?
Request a batch-specific COA and a 1 kg sample to test solubility and curing performance in your lab.
